SHIFTOUT Example

NOTE: The example below is written for the BS2 and will run on any of the BS2-family modules. Modify the $STAMP directive (as required) before downloading to the BS2e, BS2sx, BS2p, BS2pe, or BS2px.

' SHIFTOUT.BS2
' This program uses the SHIFTOUT command to interface to the 74HC595 shift
' register as an 8-bit output port.  The '595 requires a minimum of three

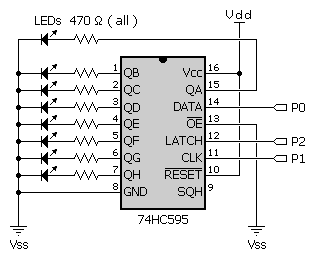

' inputs: data, clock, and latch. See the figure in the SHIFTOUT command
' description in the manual for wiring information. SHIFTOUT automatically
' handles the data and clock, pulsing the clock to shift data bits into the
' '595. An extra step (pulsing the latch input) is required to move the
' shifted bits in parallel onto the '595's output pins. Note: this code does
' not control the output-enable or reset lines of the '595. This means that
' before the BASIC Stamp first sends, the '595's output latches are turned
' on and may contain random data. In critical applications, you should hold
' output-enable high (disabled) until the BASIC Stamp can take control.

' {$STAMP BS2}
' {$PBASIC 2.5}

Dpin            PIN     0                       ' data pin to 74HC595
Clk             PIN     1                       ' shift clock to 74HC595
Latch           PIN     2                       ' latch 74HC595 outputs

counter         VAR     Byte


Setup:
  LOW Latch                                     ' initialize latch output

' This loop moves the 8-bit value 'counter' onto the output lines of the
' '595, pauses, then increments counter and repeats.  The data is shifted
' MSB first so that the MSB appears on pin QH and the lsb on QA. Changing
' MSBFIRST to LSBFIRST causes the data to appear backwards on the outputs.

Main:
  DO
    SHIFTOUT Dpin, Clk, MSBFIRST, [counter]     ' send the bits
    PULSOUT Latch, 1                            ' transfer to outputs
    PAUSE 100                                   ' Wait 0.1 seconds
    counter = counter + 1                       ' increment counter
  LOOP
  END
